Global (Multi-Series) Forecasting
In this example, we will use a stores sales dataset to perform a global (multi-series) forecast. The dataset represents sales for different store region and product category combinations from a single store chain over time. There are 12 different time series, each with a different combo of region and category (e.g. East Region Furniture Sales or West Region Technology Sales). A global forecasting model trains on all time series simultaneously. Global models can draw parallels across all time series, whereas the single-series models are siloed to only one. For example, in this case, a global model will be able to understand shared trends between all different product categories in a single region. Similarly, it will also understand shared trends across all regions for a single product category. We will walk through data preparation, then show creation of both recursive and direct forecast models.
Data Preparation
# imports
from clustercast.datasets import load_store_sales
from clustercast import DirectForecaster, RecursiveForecaster
# load store sales data
data = load_store_sales()
print(data)
# keep only certain data for training
data_train = data.loc[
data['YM'] < dt.datetime(year=2018, month=1, day=1)
]
ID YM Region Category Sales
0 1 2015-01-01 Central Furniture 506.358
1 1 2015-02-01 Central Furniture 439.310
2 1 2015-03-01 Central Furniture 3639.290
3 1 2015-04-01 Central Furniture 1468.218
4 1 2015-05-01 Central Furniture 2304.382
.. .. ... ... ... ...
568 12 2018-08-01 West Technology 6230.788
569 12 2018-09-01 West Technology 5045.440
570 12 2018-10-01 West Technology 4651.807
571 12 2018-11-01 West Technology 7584.580
572 12 2018-12-01 West Technology 8064.524
[573 rows x 5 columns]
We will display only the first 3 time series (of the 12 total) for brevity.
# display the first 3 time series
fig, ax = plt.subplots(3, 1, figsize=(9, 9))
ax = np.ravel(ax)
for i in range(3):
ts_known = data.loc[data['ID'] == i + 1]
sns.lineplot(data=ts_known, x='YM', y='Sales', ax=ax[i])
ax[i].grid(axis='both')
ax[i].set_title(f'{ts_pred['Region'].iloc[0]}, {ts_pred['Category'].iloc[0]}')
fig.tight_layout(pad=1)
Direct Forecaster
Now, let's create a direct forecaster. Of the 12 time series, all but 2 of them pass the 0.05 significance threshold for the ADF stationarity test. Because of this, we will not perform any Box-Cox or differencing transformations to the dataset. We will use the following modeling parameters:
- 12 lag features (a full year prior)
- Ordinal seasonality feature that is 12 timesteps long
- A sample weight halflife of 12 months
- Custom LightGBM hyperparameters
- Automatic CQR calibration size during the model fit
# create the forecasting model
model = DirectForecaster(
data=data_train,
endog_var='Sales',
id_var='ID',
group_vars=['Region', 'Category'],
timestep_var='YM',
lags=12,
sample_weight_halflife=12,
seasonality_ordinal=[12],
lgbm_kwargs={'n_estimators': 300, 'learning_rate': 0.03, 'max_depth': 30, 'reg_lambda': 0.03, 'verbose':-1},
)
# check stationarity
print(model.stationarity_test(test='adf'))
# fit the model
model.fit(max_steps=12, alpha=0.10, cqr_cal_size='auto')
# make predictions
direct_preds = model.predict(steps=12)
print(direct_preds)
ID Raw ADF p-value Transformed ADF p-value
0 1 3.024806e-06 3.024806e-06
1 2 9.720171e-06 9.720171e-06
2 3 4.743699e-05 4.743699e-05
3 4 4.770512e-05 4.770512e-05
4 5 3.168263e-01 3.168263e-01
5 6 2.386381e-03 2.386381e-03
6 7 7.037006e-10 7.037006e-10
7 8 5.054659e-08 5.054659e-08
8 9 1.703273e-07 1.703273e-07
9 10 9.025448e-03 9.025448e-03
10 11 6.618927e-02 6.618927e-02
11 12 1.278997e-07 1.278997e-07
ID YM Region Category Forecast Forecast_0.050 Forecast_0.950
0 1 2018-01-01 Central Furniture 3600.877987 1304.404081 12546.381077
1 2 2018-01-01 Central Office Supplies 1854.132830 758.713625 7989.223754
2 3 2018-01-01 Central Technology 3186.816992 373.205139 22228.241521
3 4 2018-01-01 East Furniture 2012.114413 1355.272540 7146.558209
4 5 2018-01-01 East Office Supplies 4260.039391 2117.299462 12542.677098
.. .. ... ... ... ... ... ...
139 8 2018-12-01 South Office Supplies 5695.951009 1421.737462 6650.924945
140 9 2018-12-01 South Technology 4235.936202 1164.827973 14433.810182
141 10 2018-12-01 West Furniture 9147.575517 1095.153727 18736.839496
142 11 2018-12-01 West Office Supplies 7922.622796 1330.612234 15289.648935
143 12 2018-12-01 West Technology 7706.907351 1524.306079 17297.574709
[144 rows x 7 columns]
As shown in the stationarity test results, the Augmented Dickey-Fuller test shows that the p-value for all but 2 of the series pass the 0.05 significance threshold. Because the data transformations must apply the same to all series in a global model and a vast majority of the series are stationary, we will not apply a transformation. Note that the "raw" and "transformed" p-values in the stationarity test match, since there were not transformations.

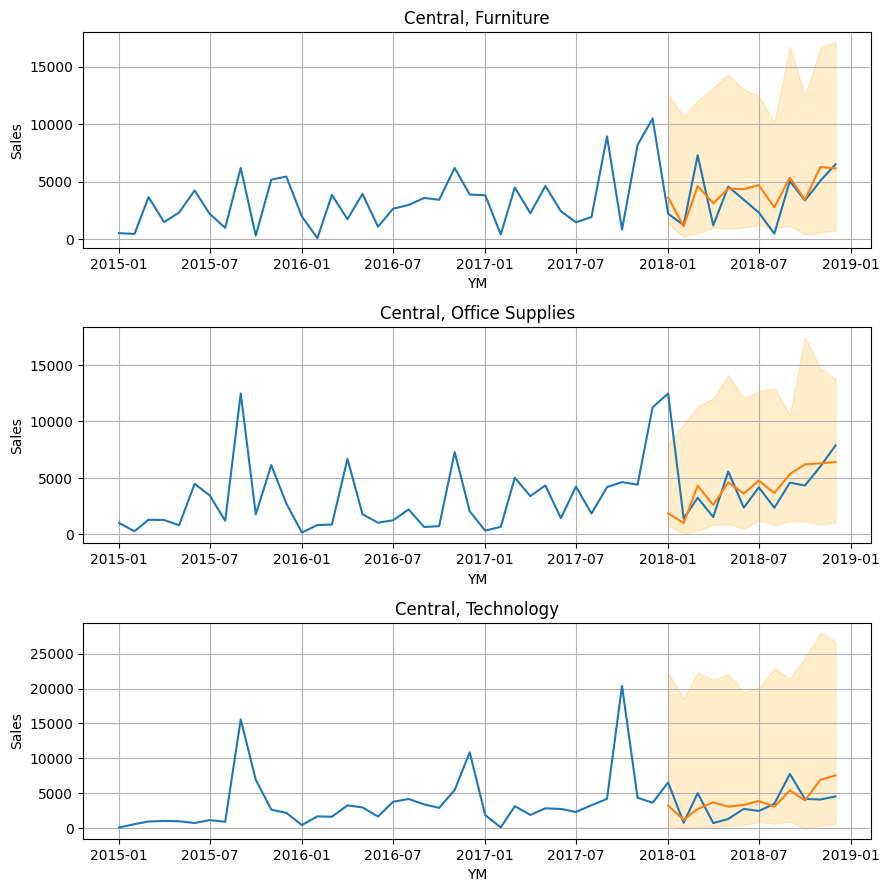

# display the first 3 time series forecasts
fig, ax = plt.subplots(3, 1, figsize=(9, 9))
ax = np.ravel(ax)
for i in range(3):
ts_known = data.loc[data['ID'] == i + 1]
ts_pred = direct_preds.loc[direct_preds['ID'] == i + 1]
sns.lineplot(data=ts_known, x='YM', y='Sales', ax=ax[i])
sns.lineplot(data=ts_pred, x='YM', y='Forecast', ax=ax[i])
ax[i].grid(axis='both')
ax[i].fill_between(x=ts_pred['YM'], y1=ts_pred.iloc[:, -2], y2=ts_pred.iloc[:, -1], alpha=0.2, color='orange')
ax[i].set_title(f'{ts_pred['Region'].iloc[0]}, {ts_pred['Category'].iloc[0]}')
fig.tight_layout(pad=1)
Recursive Forecaster
Now, let's create a recursive forecaster model. We will use the same parameters as we did with the direct forecaster.
# create the forecasting model
model = RecursiveForecaster(
data=data_train,
endog_var='Sales',
id_var='ID',
group_vars=['Region', 'Category'],
timestep_var='YM',
lags=12,
sample_weight_halflife=12,
seasonality_ordinal=[12],
lgbm_kwargs={'n_estimators': 300, 'learning_rate': 0.03, 'max_depth': 30, 'reg_lambda': 0.03, 'verbose':-1},
)
# fit the model
model.fit(alpha=0.10)
# make predictions
recursive_preds = model.predict(steps=12)
print(recursive_preds)
ID YM Region Category Forecast Forecast_0.050 Forecast_0.950
0 1 2018-01-01 Central Furniture 3600.877987 1862.175399 4532.177408
1 2 2018-01-01 Central Office Supplies 1854.132830 -649.050239 5697.865943
2 3 2018-01-01 Central Technology 3186.816992 1846.423599 14436.654395
3 4 2018-01-01 East Furniture 2012.114413 253.129934 5767.364540
4 5 2018-01-01 East Office Supplies 4260.039391 2817.869584 7339.969946
.. .. ... ... ... ... ... ...
139 8 2018-12-01 South Office Supplies 5016.456907 3244.679117 6785.770083
140 9 2018-12-01 South Technology 3063.623135 1636.479677 10877.299013
141 10 2018-12-01 West Furniture 10457.080657 8535.693350 13387.175556
142 11 2018-12-01 West Office Supplies 7680.674792 5173.239341 10100.742047
143 12 2018-12-01 West Technology 9337.751909 6797.900776 11783.540552
[144 rows x 7 columns]
# display the first 3 time series forecasts
fig, ax = plt.subplots(3, 1, figsize=(9, 9))
ax = np.ravel(ax)
for i in range(3):
ts_known = data.loc[data['ID'] == i + 1]
ts_pred = recursive_preds.loc[recursive_preds['ID'] == i + 1]
sns.lineplot(data=ts_known, x='YM', y='Sales', ax=ax[i])
sns.lineplot(data=ts_pred, x='YM', y='Forecast', ax=ax[i])
ax[i].grid(axis='both')
ax[i].fill_between(x=ts_pred['YM'], y1=ts_pred.iloc[:, -2], y2=ts_pred.iloc[:, -1], alpha=0.2, color='orange')
ax[i].set_title(f'{ts_pred['Region'].iloc[0]}, {ts_pred['Category'].iloc[0]}')
fig.tight_layout(pad=1)
